CEPAI Group Co., Ltd.
| Tîpa Paya: | L/C,T/T,D/P |
| Min. Emir: | 1 Piece/Pieces |
| Neqlîye: | Ocean,Land,Air,Express,others |
| Bender: | Shanghai,Ningbo,Huaian |

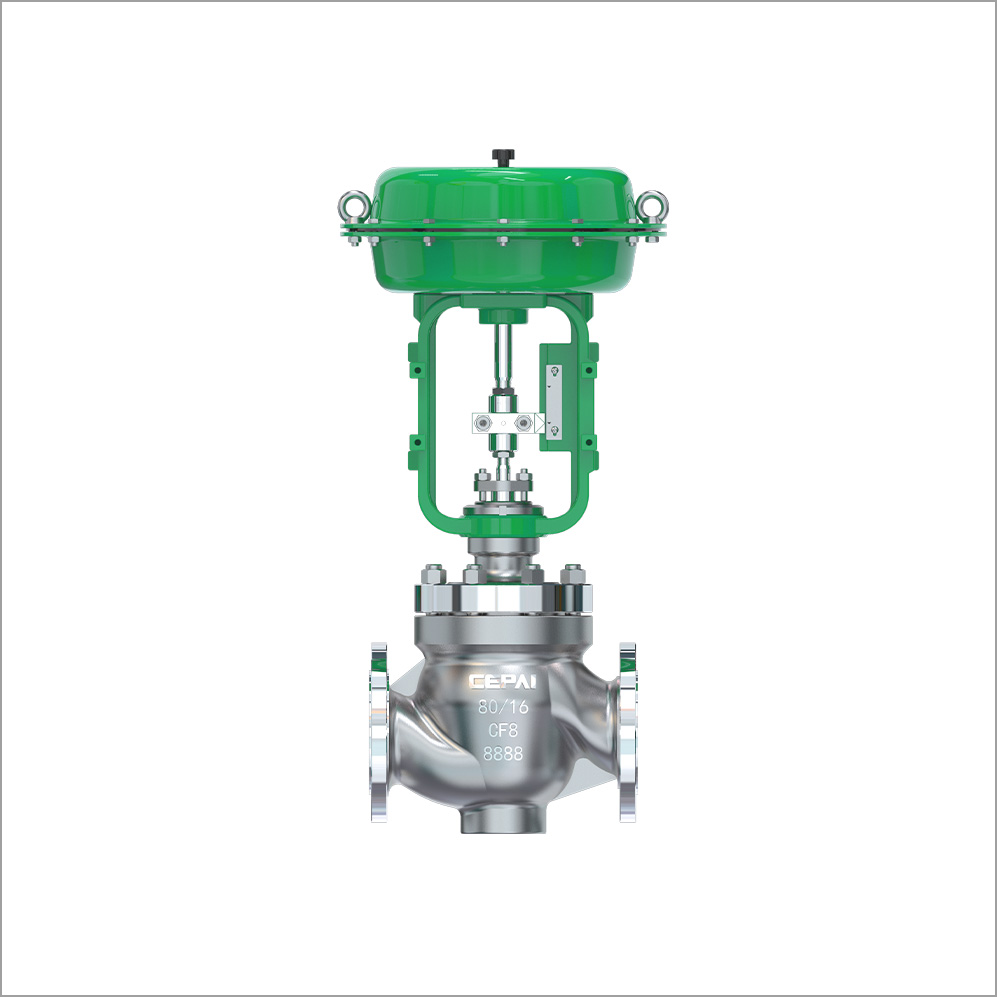

Numreya Model: 5610
Şanika şewatê: Cepai
Celebên: Globe valves
Piştgiriya Xirabkirinê: Vekirî
Cihê Orjînal: çîn
Germahiya Navîn: Germahiya normal
Erk: Pneumatic
Medium Navîn: Xaz, Av, Rûn
Awayî: Kontrol
| Yekîneyên firotanê | : | Piece/Pieces |
| Tîpa pakêtê | : | Qûtîk |
The file is encrypted. Please fill in the following information to continue accessing it
Hilberên sereke yên pargîdaniya me di valahiya pneumatic de, valahiya pneumatic ball, valahiya elektrîkê, valahiya lehenga elektronîkî, pêlavek lehenga lehîn
Laşê valve
| Type | straight single seat ball valve |
| Nominal diameter | DN15-DN400mm |
| Nominal pressure | PN16, 40, 64, ANSI150, 300, 600; |
| Connection form: | Flange type |
| Valve body material: | WCB, WC6, WC9, LCB, LC2, LC3, CF8, CF8M, etc. |
| Valve cover form: | Standard type (P): -17-+230℃ |
| Gland type: | Bolt pressing type |
| Filling: | PTFE V-shaped packing, PTFE asbestos and flexible graphite |
| Spool form: | upper guide single seat plunger spool |
| Adjustment characteristics: | equal percentage, linear, fast opening |
| Internal parts materials: | 304, 304 surfacing STL, 316, 316 surfacing STL, 316L, 17-4PH, etc |
| Pneumatic actuator | |
| Model: | Film type |
| Film material: | ethylene propylene rubber sandwiched nylon |
| Spring range: | 20-100KPa, 40-200KPa, 80-240KPa |
| Gas supply pressure: | 140KPa, 160KPa, 280KPa, 400KPa |
| Air source connector: | Rc1/4, Rc3/8 |
| Ambient temperature: | -30 ~ +70℃ |
| Action form: | gas open (reaction), gas close (positive action) |
| Note： | ① This type of large diameter or high pressure difference regulating valve can also be equipped with straight stroke piston actuators. |
| ② If the ambient temperature is lower than -30 ° C, please contact the western technical personnel. |
| Leakage: | Metal valve seat: Complies with ANSI B16.104 Level IV |
| Non-metallic valve seat: | conforms to ANSI B16.104 Class VI |
